Oil Lubricated High Pressure-Reciprocating Booster Compressors

Oil Lubricated High Pressure-Reciprocating Booster Compressors, 10-40 HP

Compressor Block
- Heavy duty cast-iron crankcase
- Precisely machined and honed cast-iron cylinders and bare pumps with cooling fins
- Dynamically balanced GGG60 cast crankshaft and counter weight
- High capacity and high pressure-resistant inlet-outlet valves made from stainless steel
- Compression and oil retaining rings
Main Motor and Drive System
- Drive system with belt pulley mechanism
- Specially designed fan type cast iron pulley
- Easy belt tensioning system
- Special loadless start system
- IE3 efficiency-class electric motors
- Star/delta motor starter
Cooling System
- 2-stage aluminium radiator for Air and Oil cooling
- Bar-Plate outlet air cooling radiator
Advantages
- Durable sliding bearings prolong maintenance periods and keep maintenance costs low
- High performance with the high engineering technology and design
- Oil-trap air filtration system provides cleaner air
- Energy-saving advanced cooling systems
Safety Systems
- Intake air control system
- High pressure safety valve
- Manual drain valve
- Non-return valve
- Belt-pulley guard
- Outlet pressure gauge
- Air inlet and outlet hoses & connections
- Vibration pads
Other Features
- Automatic discharge system for loadless start
- Low speed operation
- Long-life bearings
- Air-cooled after cooler
- Air intake filter and silencer for loadless operation
- Oil splash lubrication system
- Oil level indicator
- Special discharge system preventing oil leakage from blow down valve

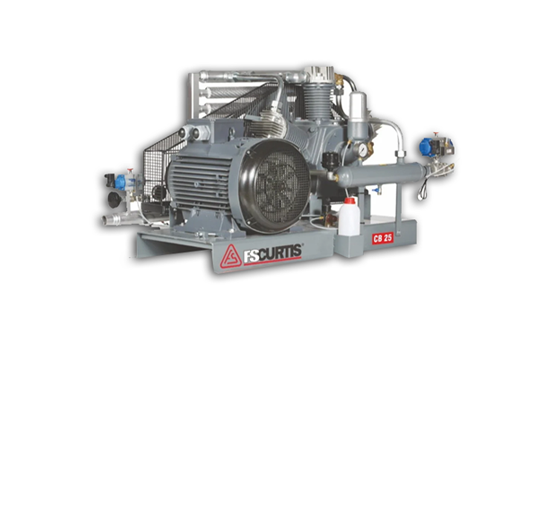

Oil Lubricated High Pressure-Reciprocating Booster Compressors
(CB Series 10-40HP)
